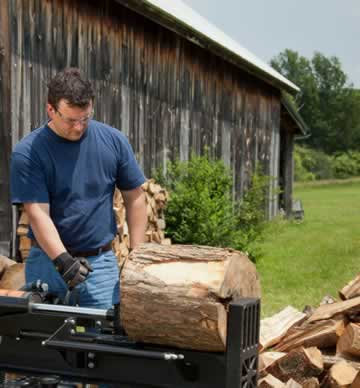

DR Horizontal - Vertical Log Splitter - 22 Ton Model
$1,299.99 Regular
$1,449.99 Assembled & Fluids

Our 22-Ton Horizontal/Vertical splitter is designed for easy transition between horizontal and vertical configurations.
The horizontal mode is easiest for most splitting tasks. But when you come across an extra big round, you can save yourself a lot strain by simply pulling out a pin, easily rotating the unit into its vertical position, and splitting the log on the ground...no lifting required! An easy-starting DR 9.59 FPT engine powers the 2 stage pump (6.3 GPM), generating 3400psi of splitting force. Logs up to 30" in diameter and up to 25" long are no problem. And the 22-Ton model's 16-second cycle time makes it one of the fastest hydraulic splitters in its class.

Contact Us for In-Stock Inventory

DR Log Splitters - 22 Ton Model

VERSATILE SPLITTING OPTIONS An electric splitter which gives you the convenience of splitting indoors even in the cold of winter, and the Horizontal/Vertical log splitters which can easily tilt to split your biggest rounds vertically!

Contact Us for In-Stock Inventory

Responsive image

DR Horizontal - Vertical Log Splitter - 22 Ton Model

Product Summary:

  • Split horizontally or vertically
  • Engine: DR 9.59 FPT
  • 16 second cycle time (6.3 gpm)
  • Cast Iron Beam
  • Optional 4-way wedge
  • Road towable up to 45 mph

Warranty Coverage

  • Engine: 2 years residential, 90 days commercial
  • Machine: 2 years residential, 90 days commercial



Contact Us for In-Stock Inventory

Responsive image

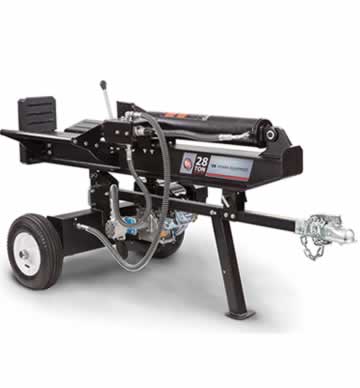

DR Horizontal - Vertical Log Splitter - 28 Ton Model
$1,599.99 Regular
$1,749.99 Assembled & Fluids

The 28-Ton Horizontal/Vertical splitter is designed for easy transition between horizontal and vertical configurations.
The horizontal mode is easiest for most splitting tasks. But when you come across an extra big round, you can save yourself a lot strain by simply pulling out a pin, easily rotating the unit into its vertical position, and splitting the log on the ground...no lifting required!

An easy-starting DR 9.59 FPT engine powers the 2 stage pump (8.8 GPM), generating 3450psi of splitting force. Logs up to 30" in diameter and up to 25" long are no problem. And the 28-Ton model's 17-second cycle time makes it one of the fastest hydraulic splitters in its class.

Contact Us for In-Stock Inventory

DR Log Splitters - 28 Ton Model

Easy Conversion

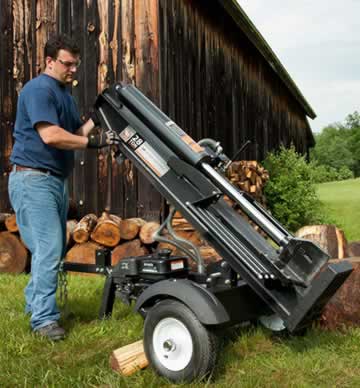

Switching from horizontal to vertical mode (or vice versa) takes only a few seconds. Just slip out a pin, rotate the unit, and re-insert pin to lock it into position. Lets you split those really big rounds without lifting the log onto the beam.

Contact Us for In-Stock Inventory

Responsive image

DR Horizontal - Vertical Log Splitter - 28 Ton Model

Product Summary:

  • Split horizontally or verticallytorque), OHV
  • Engine: DR 9.59 FPT
  • 17 second cycle time (8.8 gpm)
  • Cast Iron Beam
  • Optional 4-way wedge
  • Road towable up to 45 mph

Warranty Coverage:

  • Engine: 2 years residential, 90 days commercial
  • Machine: 2 years residential, 90 days commercial
